Rhosydd Quarry

LocationBetween Cwm Croesor and Cwmorthin, near Tanygrisiau, Gwynedd — 52.9966, -3.9905 (exact)
CommoditySlate
TypeSlate
Worked1840–1948
Maximum depth14 floors, the lowest five below the Level 9 adit
OperatorsRhosydd Slate Company (1853–1873)
New Rhosydd Slate Quarry Company Ltd (1874–1921)
The Colman family (1921–1930, owner)
John S. Matthews (1947–1948, owner)

Rhosydd, perched in the high pass between Cwm Croesor and Cwmorthin, was one of the largest underground slate workings outside Blaenau Ffestiniog itself — remote enough that its quarrymen lived on site in barracks, and, in a rare piece of underground geography, its workings run right through the mountain into the neighbouring Croesor quarry.

Location

Recorded location. The large pin is this mine; the small round markers are the nearest mines on record. Click one for its page. View on full map

History

Slate was discovered in the vicinity of Rhosydd in the early 1830s, reputedly by two men from Croesor who sought permission from the local estate owner, William Turner, to work the rock. A court case in 1833 found that the ground lay on the Cwmorthin Ucha estate of William Ormsby Gore instead, and the Ormsby Gores issued the take-notes and later the leases. Slate mining proper began there in 1840, in the opencast West Twll. The Rhosydd Slate Company was formed in 1853 and became a limited company in 1856, developing the site as one of the largest underground slate workings outside Blaenau Ffestiniog, with 170 chambers recorded by 1883 across fourteen underground levels. Because the site was too remote for a daily commute from any village or town, many of its quarrymen lived on site in barracks: a southern block built in three stages and probably complete by 1866, with a stable, a barrack that later became the quarry office with the foreman's room above, and barracks with fireplaces whose upper rooms were reached by outside stairs; and a northern range, Barics Fawr, added in the 1890s, which held drying rooms, a fitting shop and a store with barracks above. At its peak in 1885 the quarry employed 207 men and produced around 6,484 tons of finished slate that year. Over its life Rhosydd made about 222,000 tons of slate and left some 2.5 million tons of waste in its tips; its slates won a prize at the International Exhibition of 1862. In 1864 a narrow-gauge tramway was built from the quarry's mills to a cable-hauled incline engineered by Charles Easton Spooner, which dropped about 750 feet and was one of the two highest single-pitch inclines in Wales, connecting down to the Croesor Tramway and on to the port of Porthmadog.

The original company went into voluntary liquidation in 1873 after heavy development costs, and the New Rhosydd Slate Quarry Company Ltd, dominated by local Welsh shareholders, bought the site in 1874 for £29,500.

A major underground collapse in 1900, remembered locally as the 'Great Fall', destroyed a significant section of the workings and forced the company to develop new ground elsewhere in the mine; no deaths are recorded from it. Production and profitability declined steadily after the fall and through the slate trade slump before the First World War, and the quarry was shut from 1914 to 1919 as a non-essential industry, with two men kept on to maintain it; the mustard-manufacturing Colman family bought the quarry in 1921 but failed to find adequate markets, and it finally closed in 1930. Captain John S. Matthews bought the site in 1947 hoping to reopen it, but the attempt failed and the pumps were switched off for good in 1948. Between 1949 and 1954 a few slatemakers from Llanberis made roofing slates from the slabs of the demolished mill walls on Level 9, and the quarry was bought by McAlpine in the 1990s but never worked again.

Geology

The quarry worked the Old Vein, one of five distinct slate veins in the Blaenau Ffestiniog district, here around 108 feet thick and dipping north at 20-29 degrees; the veins are separated by bands of poorer-quality rock within the Cambrian Ffestiniog Flags, fine volcanic ash and mudstone later compressed and cleaved by mountain-building pressure into workable slate.

Geological setting: Slate and Regional Metamorphism (well documented example), Strike and Dip (well documented example)

Workings

By 1883 the quarry had developed 170 underground chambers, each around 50 feet wide separated by supporting pillars roughly 30 feet wide, across fourteen levels reaching down to level 9 at the lowest point of access. A narrow-gauge tramway carried slate from the mills to a cable-hauled incline dropping about 750 feet, one of the two highest single-pitch inclines in Wales, connecting down to the Croesor Tramway for onward transport to Porthmadog. The Level 9 adit, the longest at Rhosydd at 677 m, was driven between 1862 and 1871 at a gradient of 1 in 86, and wagons were hauled along it on an endless rope driven by a 24-foot waterwheel near its mouth; an underground incline 309 feet long lowered rock from Level 5 to Level 9. Floors 10 and 11 were worked in the 1890s, Floors 11 to 13 after the 1900 fall, and Floor 14 was begun after 1921.

Closure

Profitability declined after the 1900 'Great Fall' collapse and the pre-war slump in the slate trade; the quarry closed in 1930, and a final attempt to reopen it under Captain John S. Matthews from 1947 failed, with pumping stopped for good in 1948.

What remains

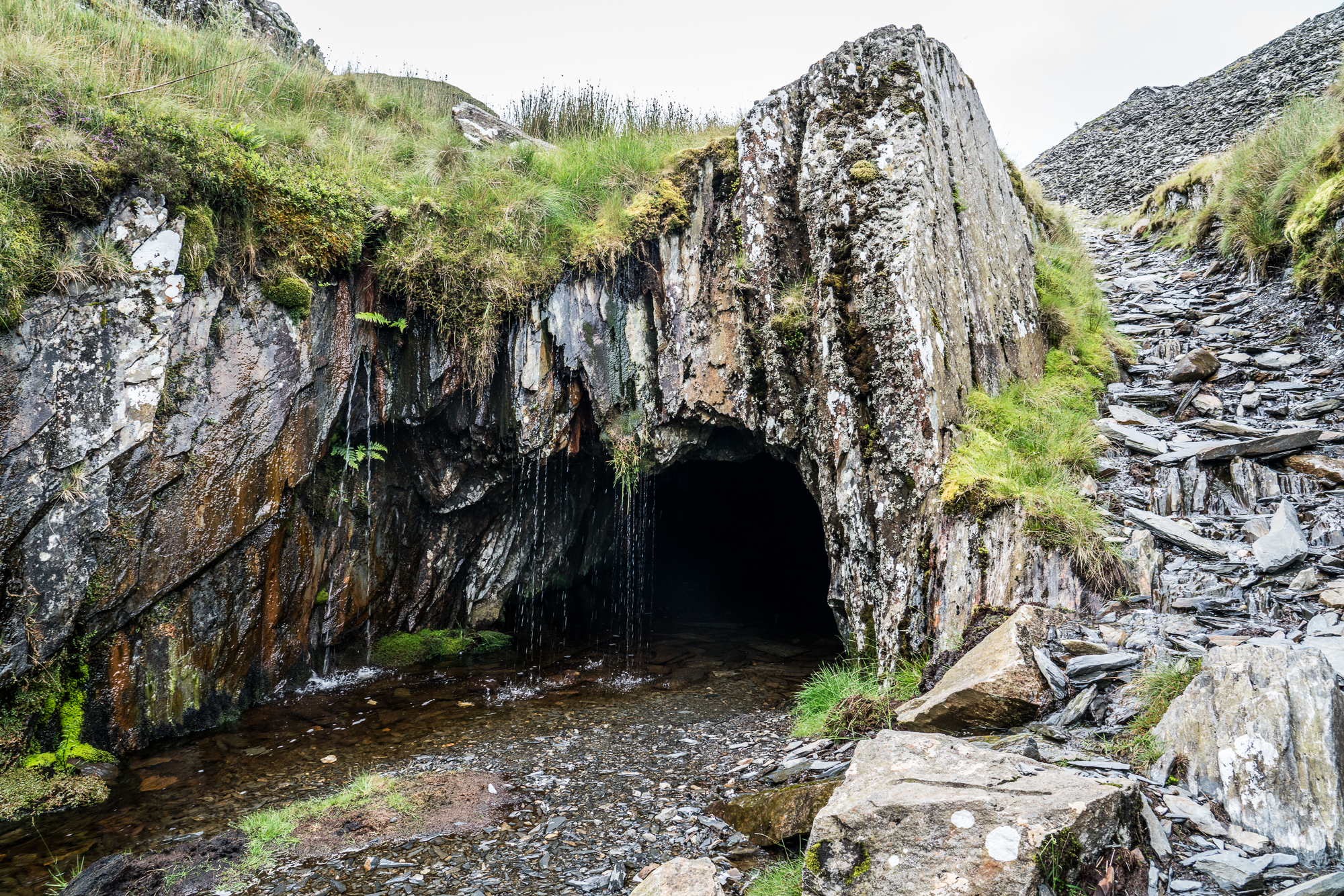

Derelict and remote. The ruined mill and the two barracks ranges stand beside the Level 9 adit portal among tips holding some 2.5 million tons of waste, with old machinery still lying about the site. The Level 9 adit survives, with standing water whose depth varies with the season; Adit 4 is blocked and Adit 0 has collapsed. Underground, the workings still connect with Croesor quarry. An incline serving Rhosydd, the 'Jacob's ladder', is a Scheduled Ancient Monument. The quarry was bought by McAlpine in the 1990s and has not been worked since.

The ruined barracks blocks, including the larger Barics Fawr, survive on site along with the remains of the mill buildings and the quarry's inclines; underground, the workings are recorded by cave/mine explorers as still connecting through to the neighbouring Croesor quarry.

Related mines

Nearby mines

Straight-line distance, within 9 miles (15 km).

Photographs & further reading

Rhosydd slate mine, Blaenau Ffestiniog, North Wales, July 2021/January 2022 (28DaysLater) (photos)

A detailed 2021-22 report, half history and half exploration: the discovery of slate at Rhosydd in the early 1830s, the 1833 court case over an ill-defined estate boundary, the first adit of the 1840s, and the formation of the Rhosydd Slate Company in 1853 with £50,000 of mostly London capital — set against photographs of the workings as they are now.

View source
Croesor-Rhosydd Through Trip - April 2011 (28DaysLater) (photos)

An account of the Croesor-Rhosydd through trip, the classic underground route between the two quarries by way of the survey tunnel driven to settle their boundary dispute, describing the 80-foot pitch, home-made suspension bridges, zip wires and deep water that the route now crosses.

View source

Sources

  1. (secondary) Rhosydd quarry — Wikipedia
  2. (secondary) Area 12 Cwm Croesor and Rhosydd Slate Quarries and Incline System — Heneb - Trust for Welsh Archaeology
  3. (primary) Rhosydd Slate Quarry, Level 9 Barracks (NPRN 408867) — Coflein, Royal Commission on the Ancient and Historical Monuments of Wales
  4. (secondary) Rhosydd Quarry — Festipedia (Ffestiniog Railway Society)
  5. (observational) Rhosydd slate mine, Blaenau Ffestiniog, North Wales, July 2021/January 2022 — 28DaysLater
  6. (observational) Rhosydd Slate Mine, Blaenau Ffestiniog, North Wales, January 2022 — Derelict Places
  7. (primary) Rhosydd Slate Quarry (NPRN 40600) — Coflein, Royal Commission on the Ancient and Historical Monuments of Wales
  8. (primary) Rhosydd Slate Mine plans (surface plan, plan and section of workings) — British Geological Survey / Cumbria Amenity Trust Mining History Society
