Woodland Colliery

Also known asGallashiels Colliery
LocationWoodland, near Butterknowle, County Durham — 54.6349, -1.8985 (exact)
CommodityCoal
TypeCoal
WorkedBy 1874–March 1921
Maximum depthThe Woodland shaft reached the Main Coal at 136 feet.
OperatorsCargo Fleet Iron Co. Ltd (?–1921, owner) — Owner by the 1920s, at the closure of March 1921.
Woodland Coal Co. Ltd (owner) — Owner in the lists of the 1880s.
Woodland Collieries Co. Ltd (owner) — Owner in the lists of the 1890s.

A colliery at the upland village of Woodland in south-west County Durham, at work by 1874, which raised coking coal from the Five-Quarter, Main, Busty and Brockwell seams and closed in March 1921; its Cowley shaft of 1896 worked on with the Arnghyll drifts.

Location

Recorded location. The large pin is this mine; the small round markers are the nearest mines on record. Click one for its page. View on full map

History

Woodland Colliery stood at Woodland, sixteen miles south-west of Durham on the edge of the coalfield. It was at work by April 1874, when a hewer was killed leaping from the cage, and in the same year a series of borings near the colliery proved the Brockwell seam. A shaft was sunk to the Brockwell north of the Woodlands Pit in 1881, more boreholes followed in 1893, and in 1896 the Cowley shaft was sunk to the same seam about three quarters of a mile to the south.

The owners were the Woodland Coal Co. Ltd in the 1880s and the Woodland Collieries Co. Ltd in the 1890s; by the 1920s the colliery belonged to the Cargo Fleet Iron Co. Ltd. Output is listed from 1888 and from 1894 as coking and manufacturing coal. Employment grew from 155 in 1894 to 302 in 1900, with Cowley included, 426 in 1910 and 494 in 1921, 384 of them below ground. The Five-Quarter and Main Coal were the seams worked in 1905 and 1910, and the Ballarat, Brockwell, Busty and Main Coal in 1921.

A Brockwell plan had been deposited as abandoned in 1892 and the Busty followed in 1919. The colliery closed in March 1921, when the remaining seams were abandoned. Four men were still on the books at Cowley in 1923, and the Cowley shaft continued with the Arnghyll workings as Arnghyll and Cowley until May 1951.

The Woodland Collieries company also worked pits at Cow Close, Cowley, Crake Scar and New Copley. A railway about five miles long linked Woodland Colliery and the coking plant at Crake Scar with the Bishop Auckland and Barnard Castle line near the Gaunless viaduct, and coke ovens were later built at Woodland itself.

Geology

Coal Measures at the western edge of the Durham coalfield. The Woodland shaft passed the Five-Quarter seam, 4 feet 7 inches thick with a band, at 68 feet and the Main Coal, 6 feet 1 inch with a band, at 136 feet; the Busty and Brockwell lay below and were reached by the 1881 and Cowley shafts.

Geological setting: Sedimentary Beds and Seams (well documented example)

Workings

The Woodlands Pit, a shaft of 1881 to the Brockwell seam north of it, and the Cowley shaft of 1896 to the south, worked together from 1900.

Closure

Closed in March 1921; the Ballarat, Brockwell or Main and Busty or Five-Quarter seams were abandoned that year and a further Brockwell or Main plan in 1924. The Cowley shaft was worked afterwards with Arnghyll.

What remains

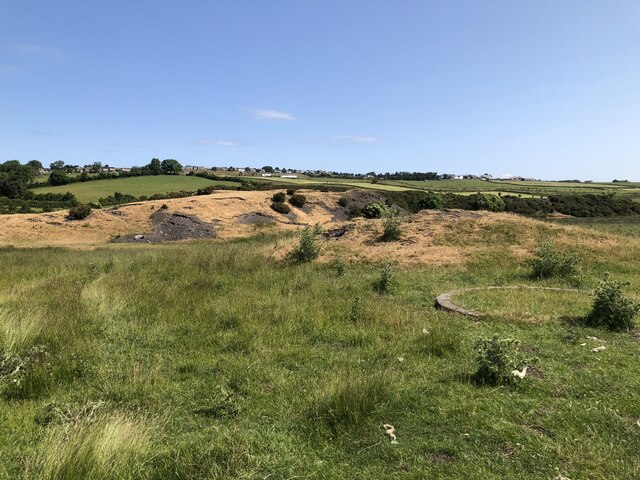

At the Cowley shaft the ground is rough pasture, with low grassed mounds of spoil, patches of bare shale and a circular concrete ring in the grass.

Grassed spoil mounds and a concrete ring at the site of the Cowley shaft.

Related mines

Nearby mines

Straight-line distance, within 9 miles (15 km). Show on the map.

Further reading

Durham Mining Museum: Woodland Colliery (reference)

Owners, employment and seams by year, with the shaft sections and those killed.

View source

Sources

  1. (primary) Durham Mining Museum: Woodland Colliery — Durham Mining Museum
  2. (observational) Site of Cowley Colliery, 2023 — Geograph (David Robinson)
  3. (primary) Durham Mining Museum: Woodland Colliery shaft details — Durham Mining Museum
  4. (primary) BGS mine plans catalogue: Woodland (Durham), Main seam, abandoned 1921 — Mining Remediation Authority / BGS mine plans catalogue
  5. (primary) BGS mine plans catalogue: Woodland (Durham), Busty seam, abandoned 1919 — Mining Remediation Authority / BGS mine plans catalogue
  6. (secondary) Northumberland and Durham Coalfield (NCB colliery list) — Northern Mine Research Society
  7. (secondary) The Auckland Coalfield (The Gaunless Valley in World War 1) — The Fallen Servicemen of South West County Durham
